10GBase-LR SFP LC Transceiver

What This Product Does

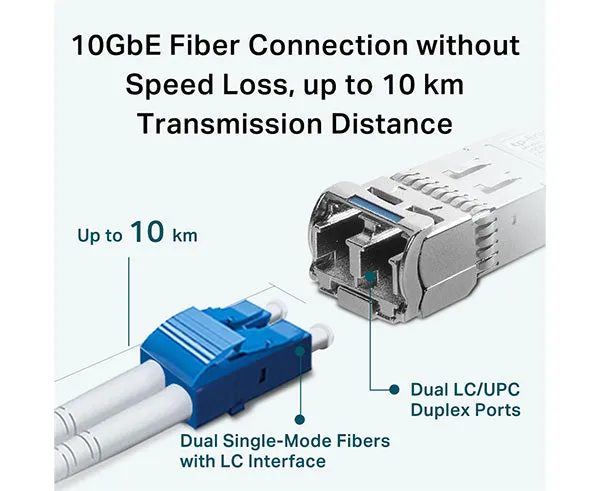

The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310nm single mode SFP transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.

Features

Single Mode SFP LC Transceiver
Hot-Pluggable with Maximum Flexibility
Supports Digital Diagnostic Monitoring (DDM)
Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP MSA)

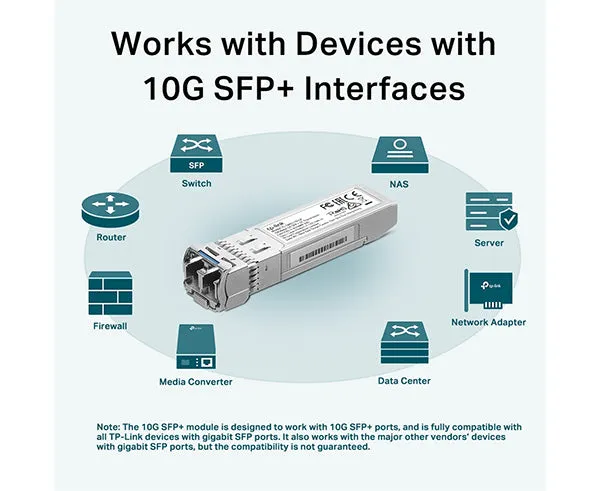

Compatible with Switches with 10G SFP Ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.

Specifications


DDM	Yes
SFP-MSA	Yes
Hot Swappable	Yes


Standards and Protocols	IEEE 802.3ae, TCP/IP
Wave Length	1310nm
Power Supply	3.3V
Fiber Type	9/125um Single Mode
Max. Cable Length	10km
Data Rate	10Gbps
Port Type	LC Duplex
Safety & Emission	FCC, CE

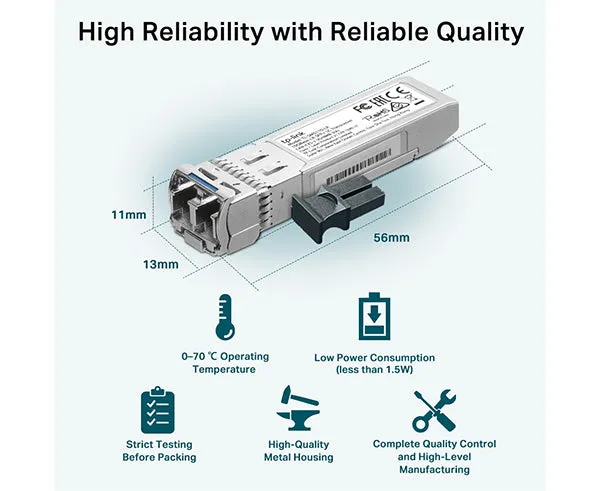

Environment	Operating Temperature: 0–70 °C (32–158 °F) Storage Temperature: -40–85 °C ( -40–185 °F) Operating Humidity: 10–90% RH, Non-Condensing Storage Humidity: 5–90% RH, Non-Condensing
