1000Base-BX WDM Bi-Directional SFP Module

What This Product Does

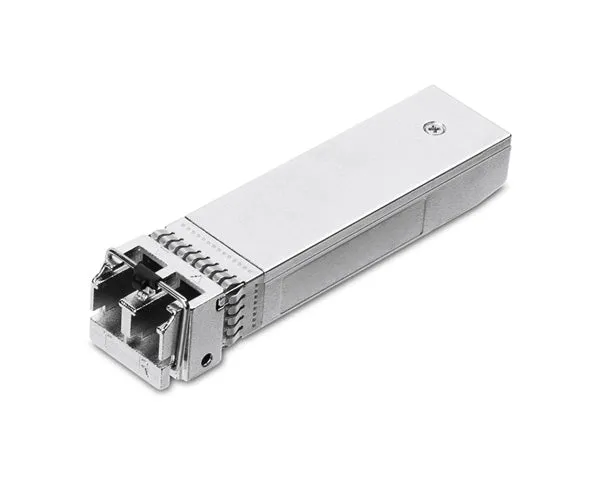

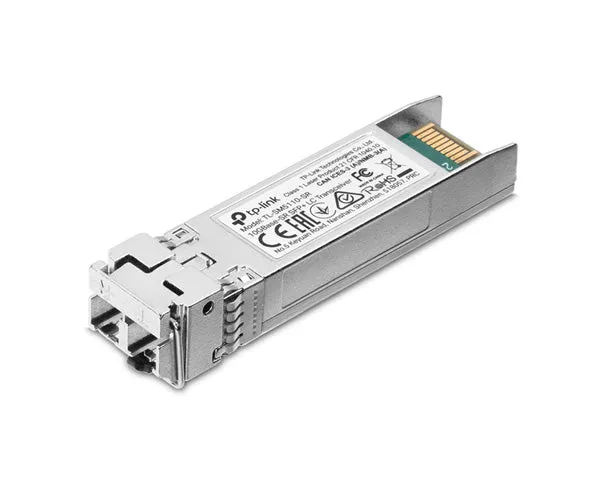

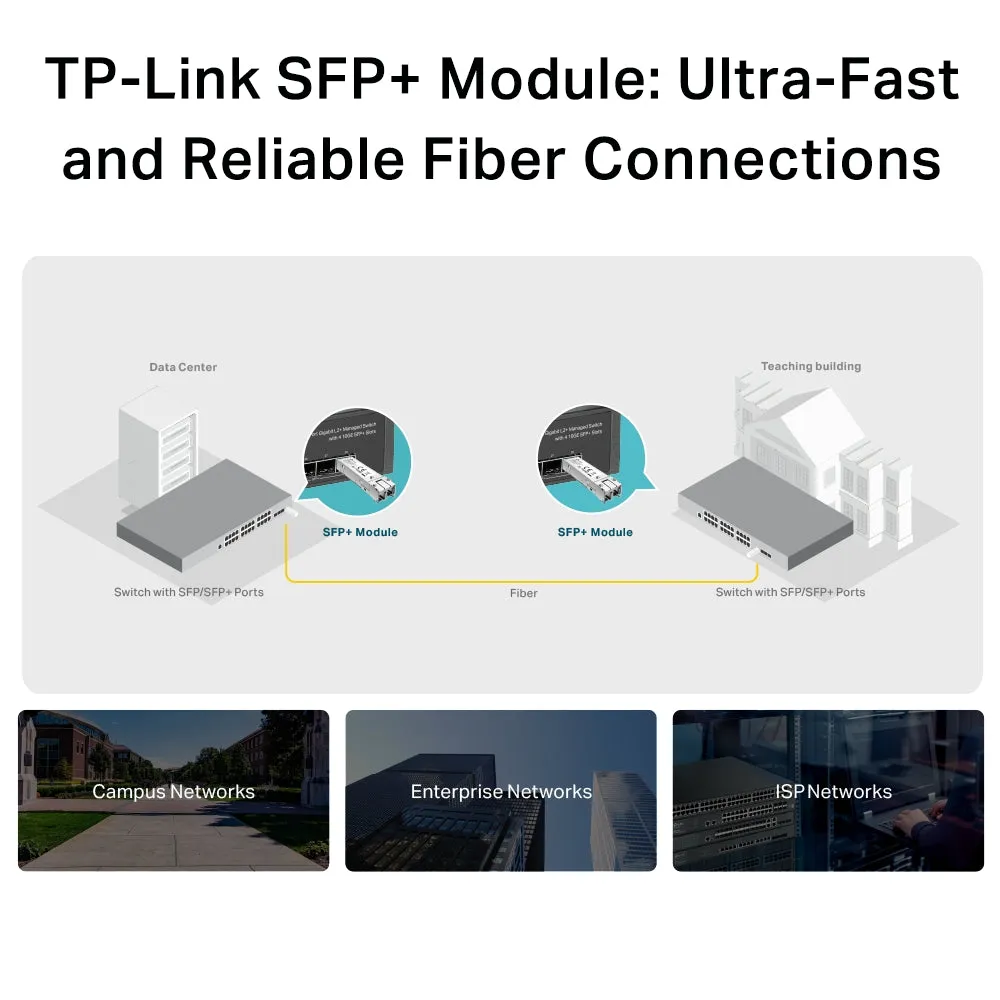

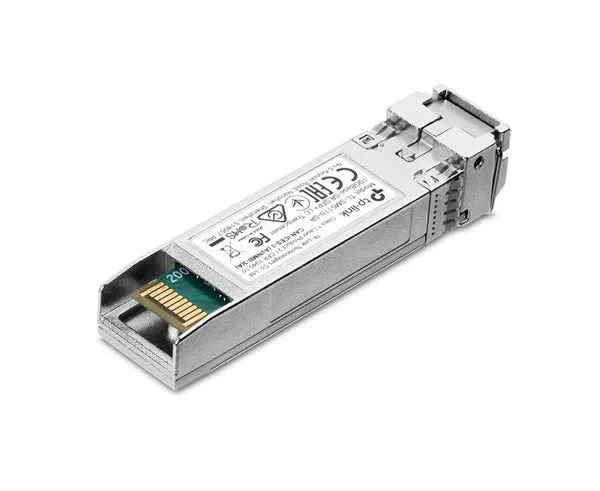

The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high-performance 850nm multi-mode SFP transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.

Features

Multimode SFP LC Transceiver
Hot-Pluggable with Maximum Flexibility
Supports Digital Diagnostic Monitoring (DDM)
Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP MSA)

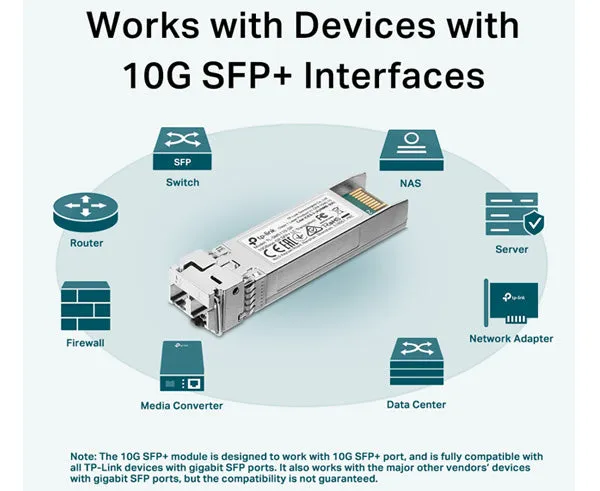

Compatible with Switches with 10G SFP ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.

Specifications

HARDWARE FEATURES
DDM	Yes
SFP-MSA	Yes
Hot Swappable	Yes

MEDIA CONVERTER & MODULE
Standards and Protocols	IEEE 802.3ae, TCP/IP, SFF-8472
Wavelength	850nm
Power Supply	3.3 v
Safety & Emission	FCC, CE
Fiber Type	50/125um or 62.5/125um Multimode

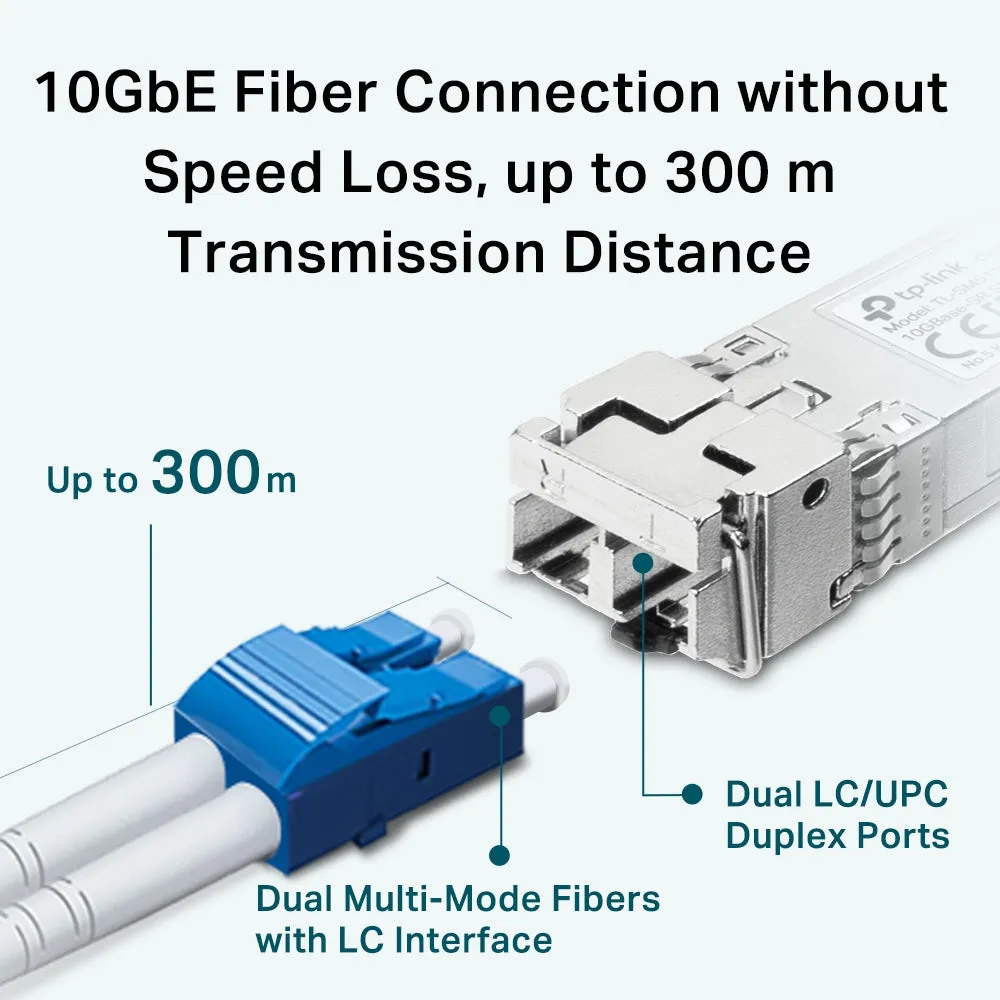

Max. Cable Length	300m (OM3)
Data Rate	10Gbps
Port Type	LC/UPC

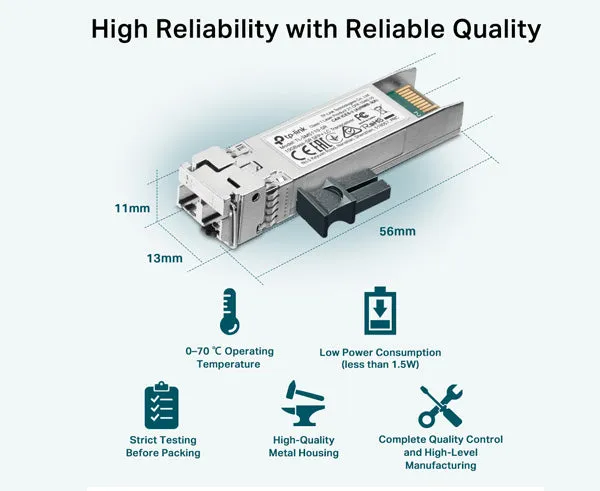

Environment	Operating Temperature: 0–70°C (32–158°F) Storage Temperature: -40–80°C ( -40–176°F) Operating Humidity: 10–90% RH, Non-Condensing Storage Humidity: 5–90% RH, Non-Condensing
