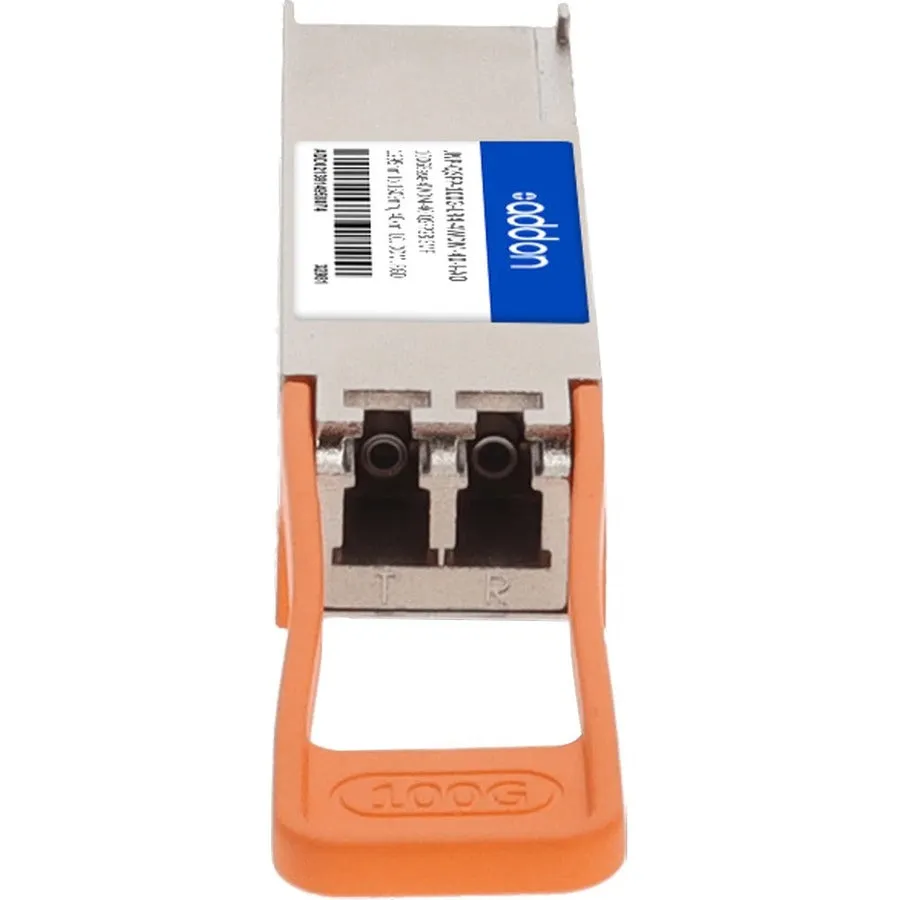

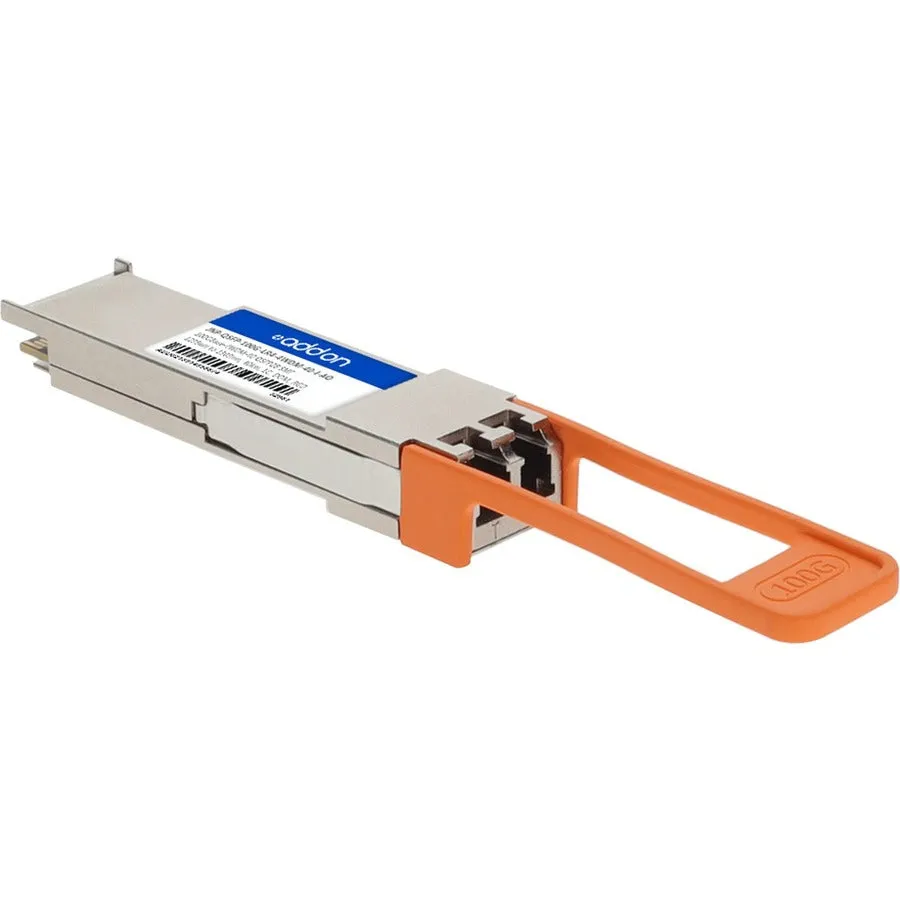

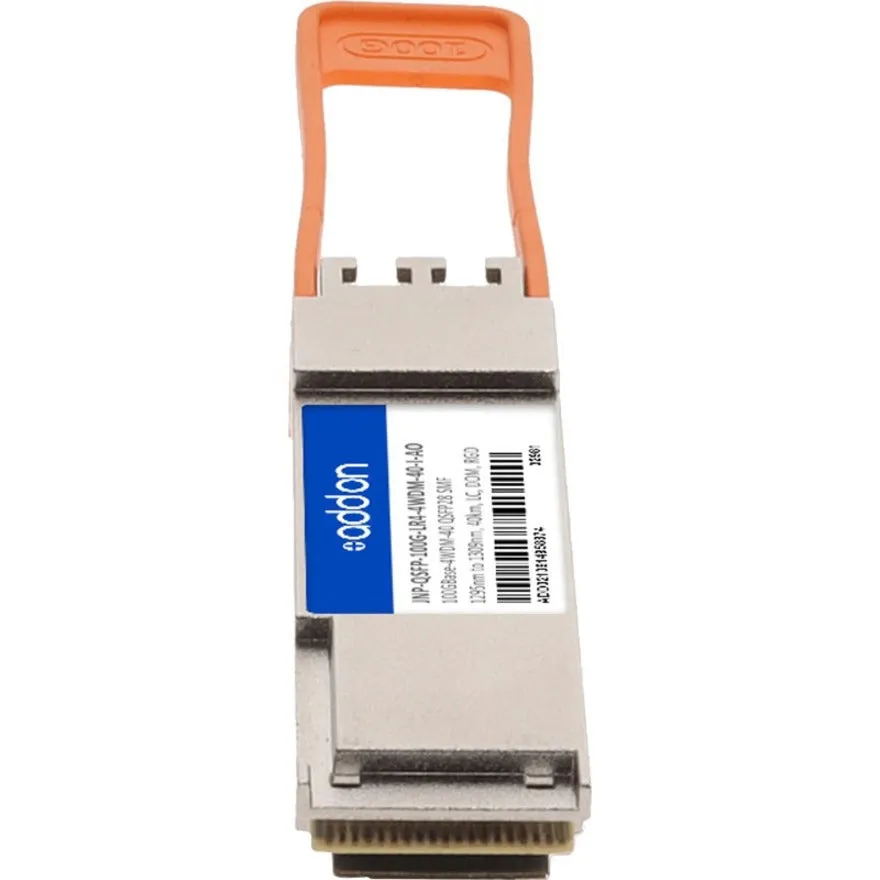

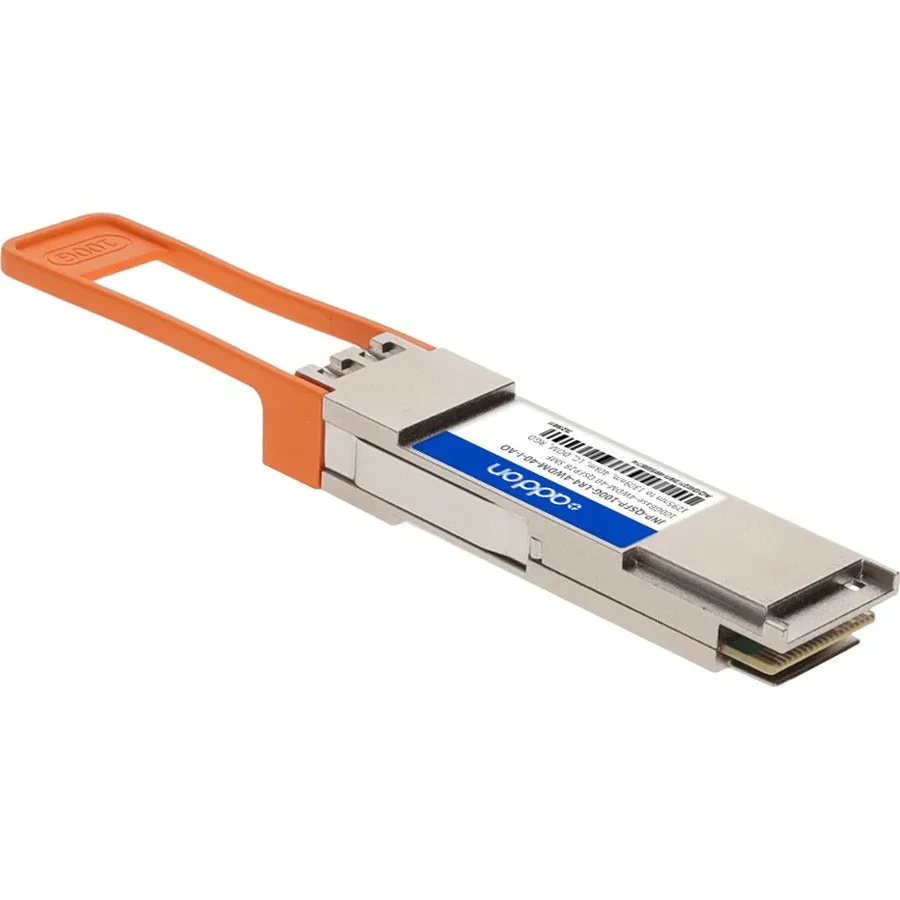

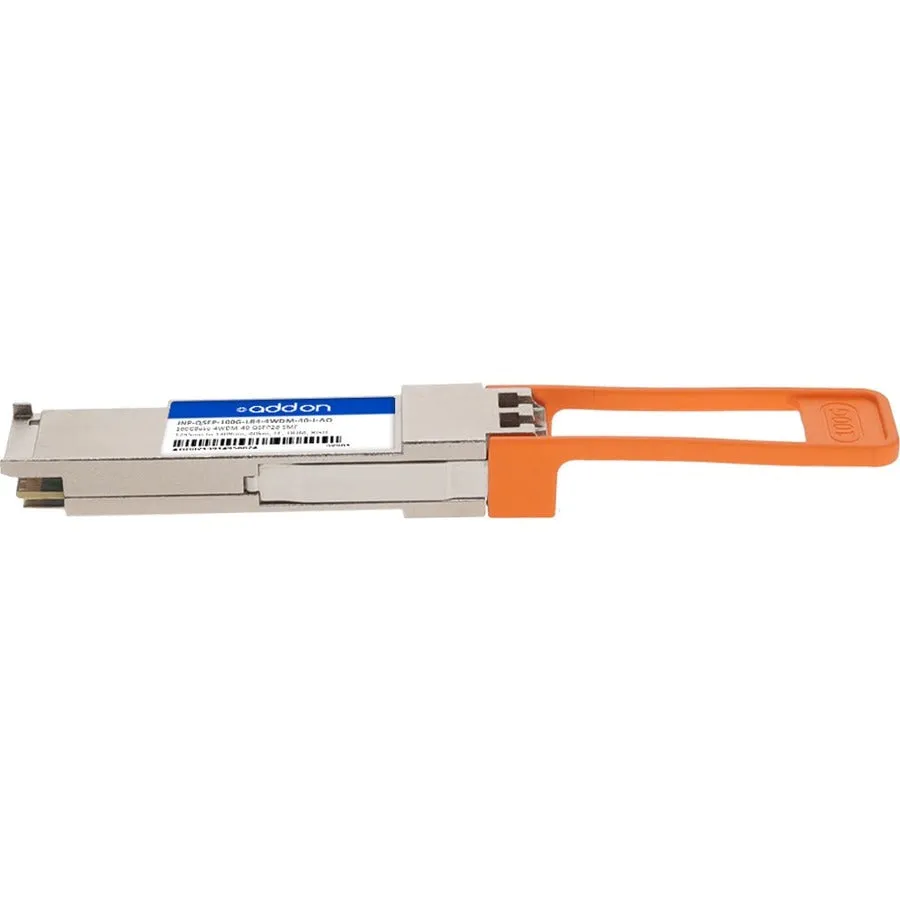

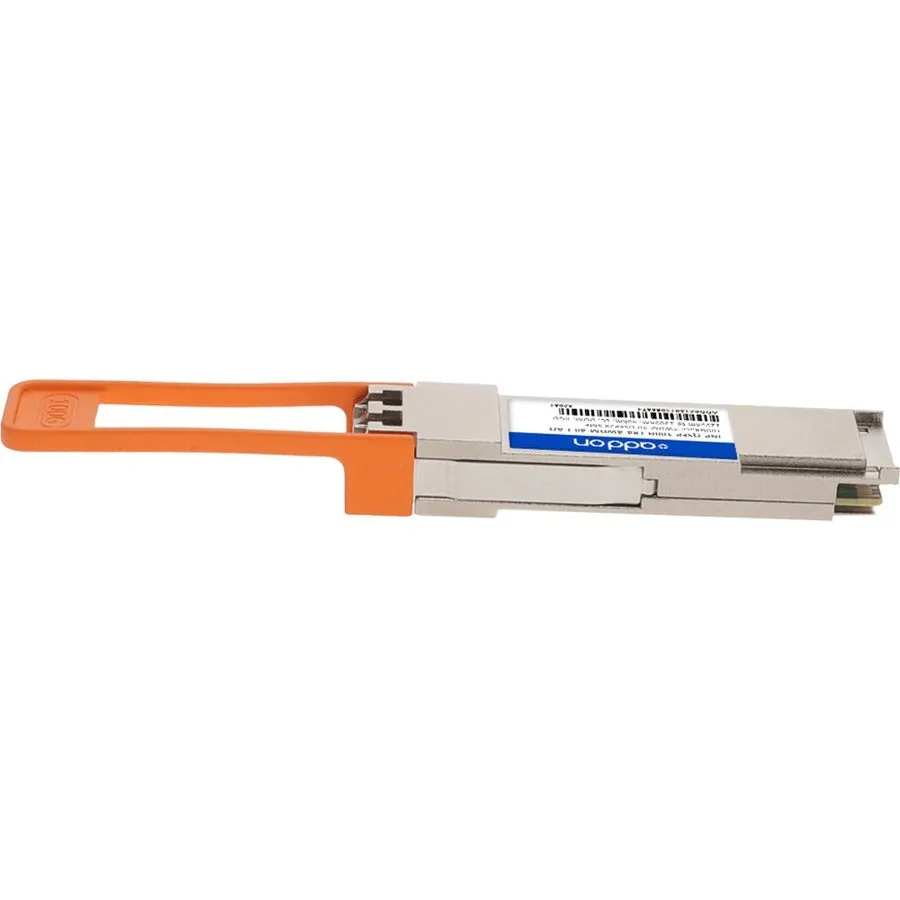

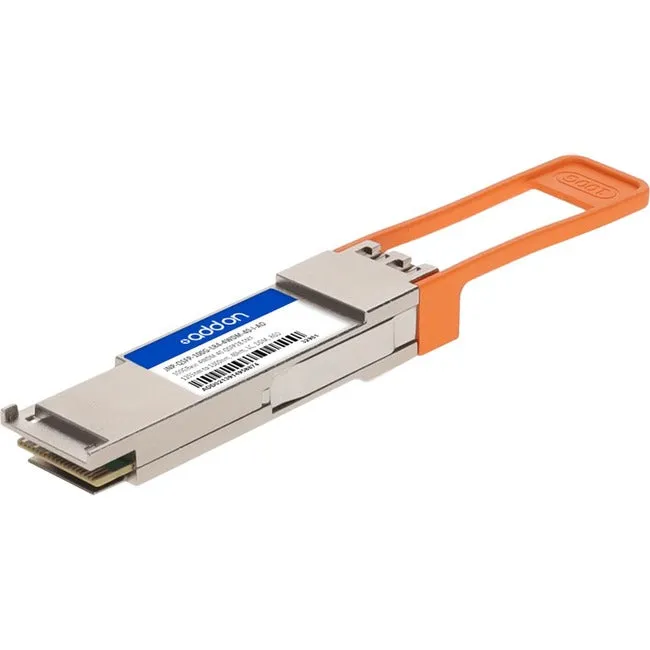

AddOn Juniper Networks QSFP28 Module

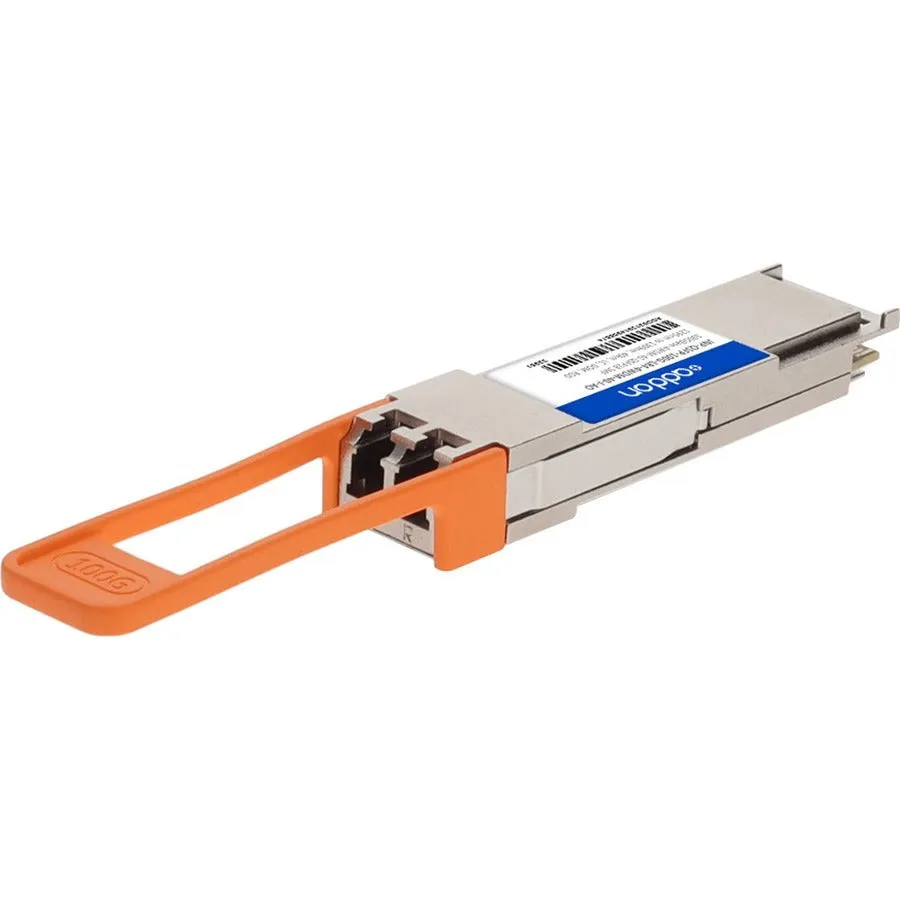

This Juniper Networks® JNP-QSFP-100G-LR4-4WDM-40-I compatible QSFP28 transceiver provides 100GBase-4WDM-20 throughput up to 40km over single-mode fiber (SMF) using a wavelength of 1295nm to 1309nm via an LC connector. It is also capable of withstanding rugged environments and can operate at temperatures between -40C to 85C. It is guaranteed to be 100% compatible with the equivalent Juniper Networks® transceiver. This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.

• QSFP28 MSA compliant


• Supports 103Gbps


• Single 3.3V Power Supply and Power dissipation < 5W


• Up to 40km over SMF with FEC on host


• Operating case temperature: -40°C to 85°C


• Four 25Gbps Cooled DFB-based LAN-WDM lasers on transmitter side


• APD and TIA array on the receiver side


• 4x25G electrical interface


• Duplex LC receptacles


• I2C interface with integrated Digital Diagnostic Monitoring

Product Type: QSFP28
Environmentally Friendly: Yes
Environmental Certification: WEEE
Taa Compliant: Yes
Country Of Origin: United States
Brand Name: AddOn
Compatibility: MSA Compliant
Form Factor: Hot-swappable
Manufacturer: AddOn
Product Name: Juniper Networks QSFP28 Module
Manufacturer Part Number: JNPSP100GLR4WM40I-AO
Manufacturer Website Address:
Packaged Quantity: 1
Limited Warranty: Lifetime
