Wireless Interconnection

The new SmartLINK technology still provides the same proven wireless interconnection technology as RadioLINK and RadioLINK , using Radio Frequency signals and is completely compatible with both existing systems.

No need for tricky cable runs, alarms interconnect using Radio Frequency signals
When one alarm is triggered, all others sound for audibility throughout the property
Expand existing systems easily by adding in SmartLINK technology
Achieve remote whole-system data monitoring and extraction when access is not possible

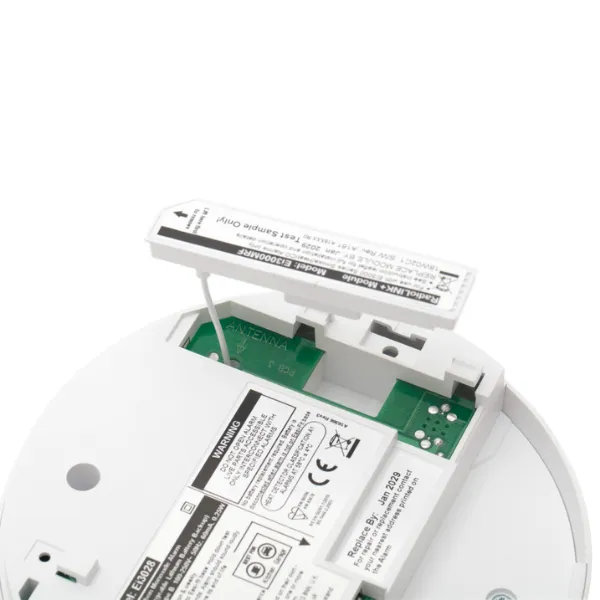

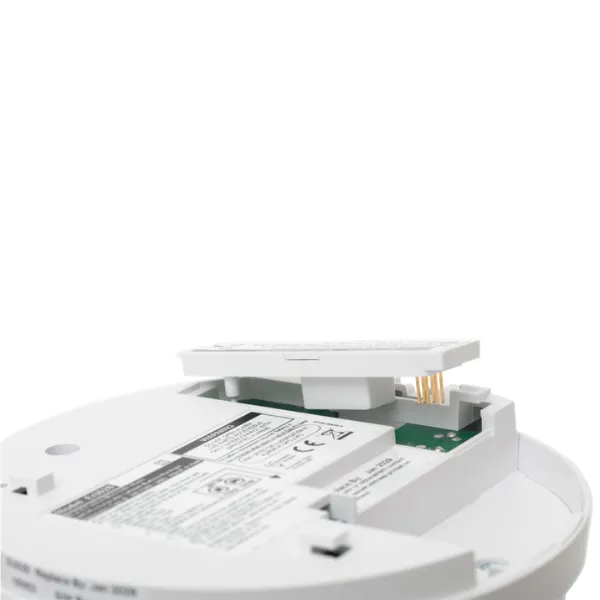

To add SmartLINK technology to your system, simply plug SmartLINK modules into any 3000 Series alarm head.

Technical Information

Supply Voltage: Powered from Alarm
RF Frequency: 868MHz band (1% duty cycle)
RF Power: 10dBm
RF Protocol: Proprietary RF Protocol using multi-path, multi-repeater mesh architecture
RF Range: >100 metres in free air, 30 metres in standard property
System Size: Up to 12 RF devices
Indicator LED’s: 3 colour LED: Blue, Green and Red
Data Monitoring: Via Ei1000G Gateway
Data Download: Via EiUSB1
Operating Temperature: -10°C to 40°C
Humidity Range: 15% to 95% relative humidity
Plastic Material: UL 94 V0 flame retardant
Dimensions – Product: 80mm x 18mm x 16mm
Dimensions – Boxed: 120mm x 110mm x 35mm
Weight: 10g (product only), 62g (boxed)
Guarantee: 5 years
