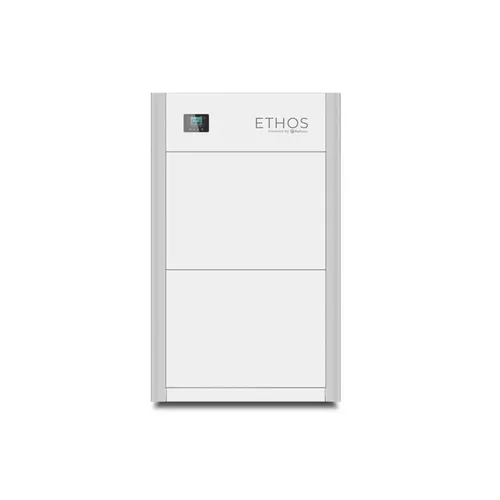

Name: BigBattery 48V ETHOS 10.2KWH (2 Module)
SKU: 292631

Product Details ＋

Welcome to the forefront of energy storage innovation with the BigBattery 48V ETHOS systems. These 5.12kWh battery modules (10.2kWh - 2 module) form the backbone of adaptable power solutions suitable for a wide range of applications, including grid-tied residences, solar installations, remote off-grid locations, and commercial establishments across the country. Featuring Tier 1 LiFePO4 cells, renowned for their safety and durability, and offering scalability up to 80kWh per Control Box, the ETHOS system sets a new standard for dependable energy storage solutions.

Scalable Power: 5.12kWh modules, expandable up to 80kWh per ETHOS Control Box.
Safety First: Tier 1 LiFePO4 cells and built-in fire-extinguishing modules ensure maximum safety.
Smart Monitoring: Advanced BMS technology provides real-time monitoring of voltage, current, and temperature.
Reliable Connectivity: UL-certified connectors ensure secure and reliable power connections.
Durable Design: IP65-rated casing protects against the elements for long-lasting reliability.
Versatile Applications: Ideal for emergency backup or as part of a solar energy system.

Designed For:

48V Applications
Residential Power Systems
Home Solar Systems
UL-Certified ESS
Cabins & Tiny Homes
Family Homes & Mansions
Off-Grid Homesteads
Emergency Power
Whole Home Backup
Lead Acid Replacement
Intense Heat & Cold

BigBattery 48V ETHOS 10.2KWH (2 Module) Bundle Includes:

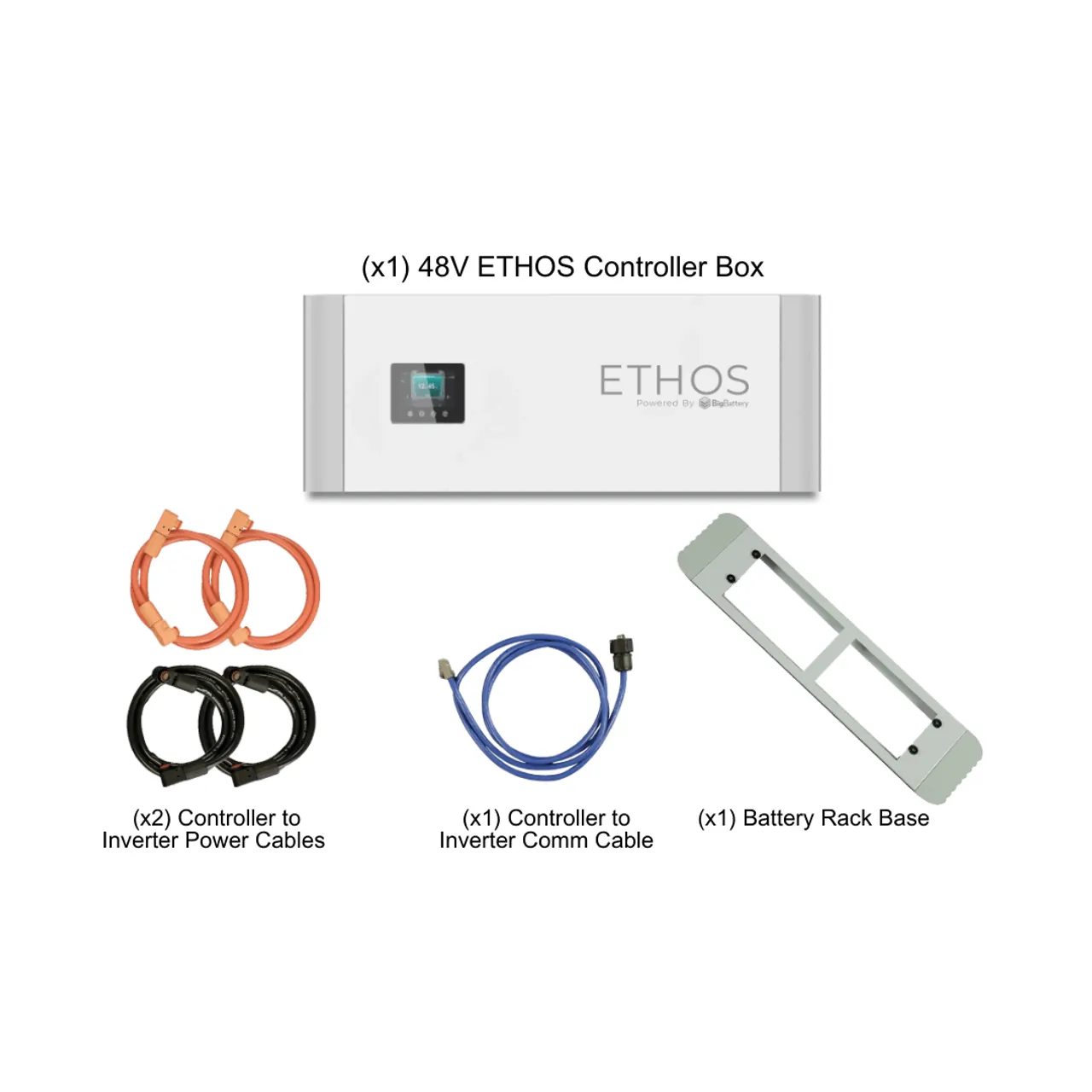

1 × ETHOS Control Box.

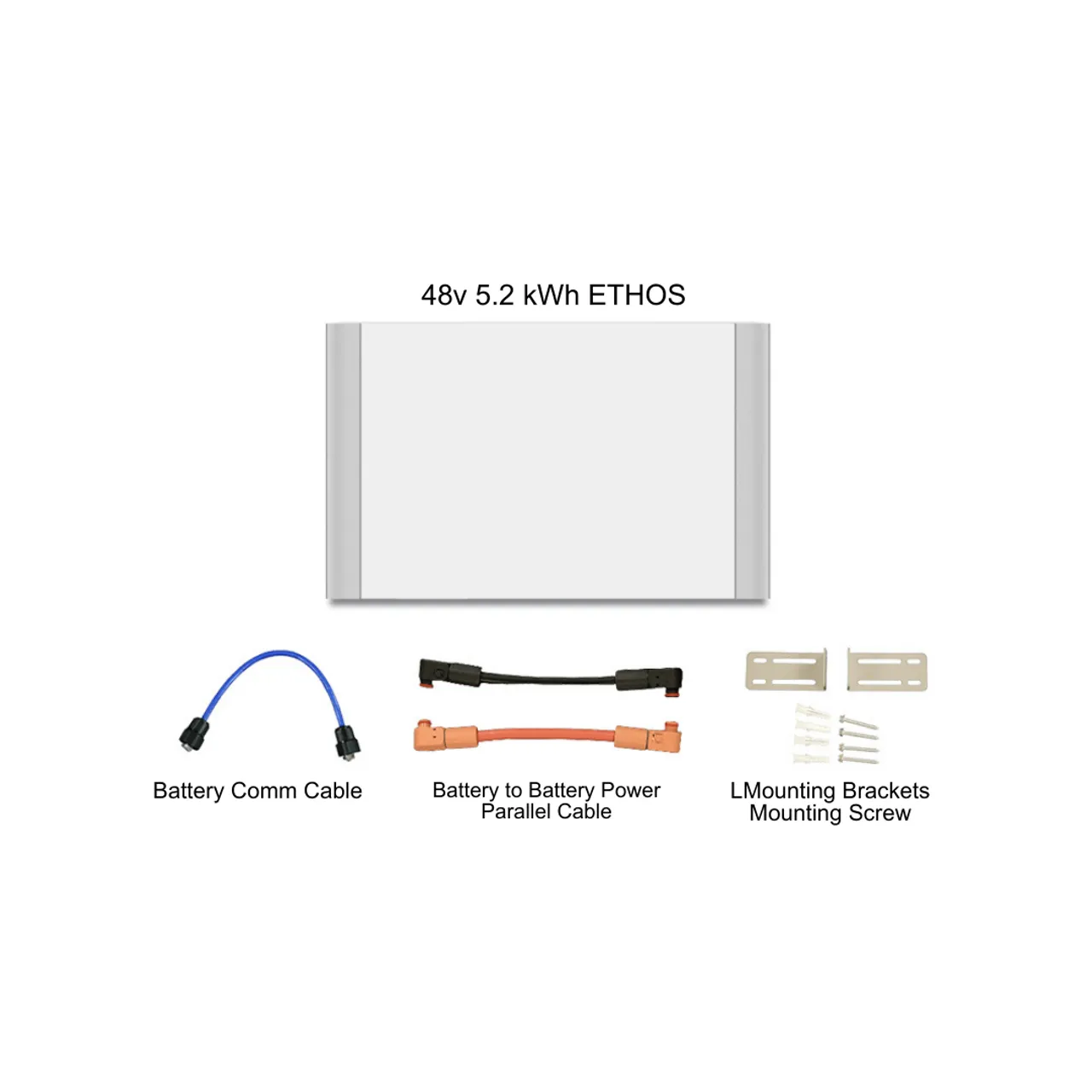

2 × 48V ETHOS 5.12kWh Stackable Battery Module

1 × 10kWh Ethos Controller to Battery Power Cable 31.5" inch (800mm)

2 Stack Specs:

SKU:	BNDL-B0003
System Voltage:	48V
Nominal Voltage:	51.2V
Chemistry:	LiFePO4
kWh Capacity:	10.24kWh
Ah Capacity:	200Ah
Charging Voltage Range:	55.6 - 57V
Max Charge Voltage:	57V
Operating Voltage Range:	48 – 57V
Suggested Low Voltage Cutoff:	48 – 50.8V
Cell Configuration:	16S 2P
Max Continuous Discharge Current:	200A
Max Continuous Power:	10240W
Max Discharge Peak Current:	300A (Max 5 seconds)
Max Charge Current:	200A
Charge Temperature Range:	32°F - 113°F (0°C - 45°C)
Discharge Temperature Range:	-4°F - 140°F (-20°C - 60°C)
Optimal Discharge Temperature Range:	59°F - 95°F (15°C - 35°C)
Storage Temperature Range (SoC >50%):	-4°F - 113°F (-20°C - 45°C) (Max 6 months)

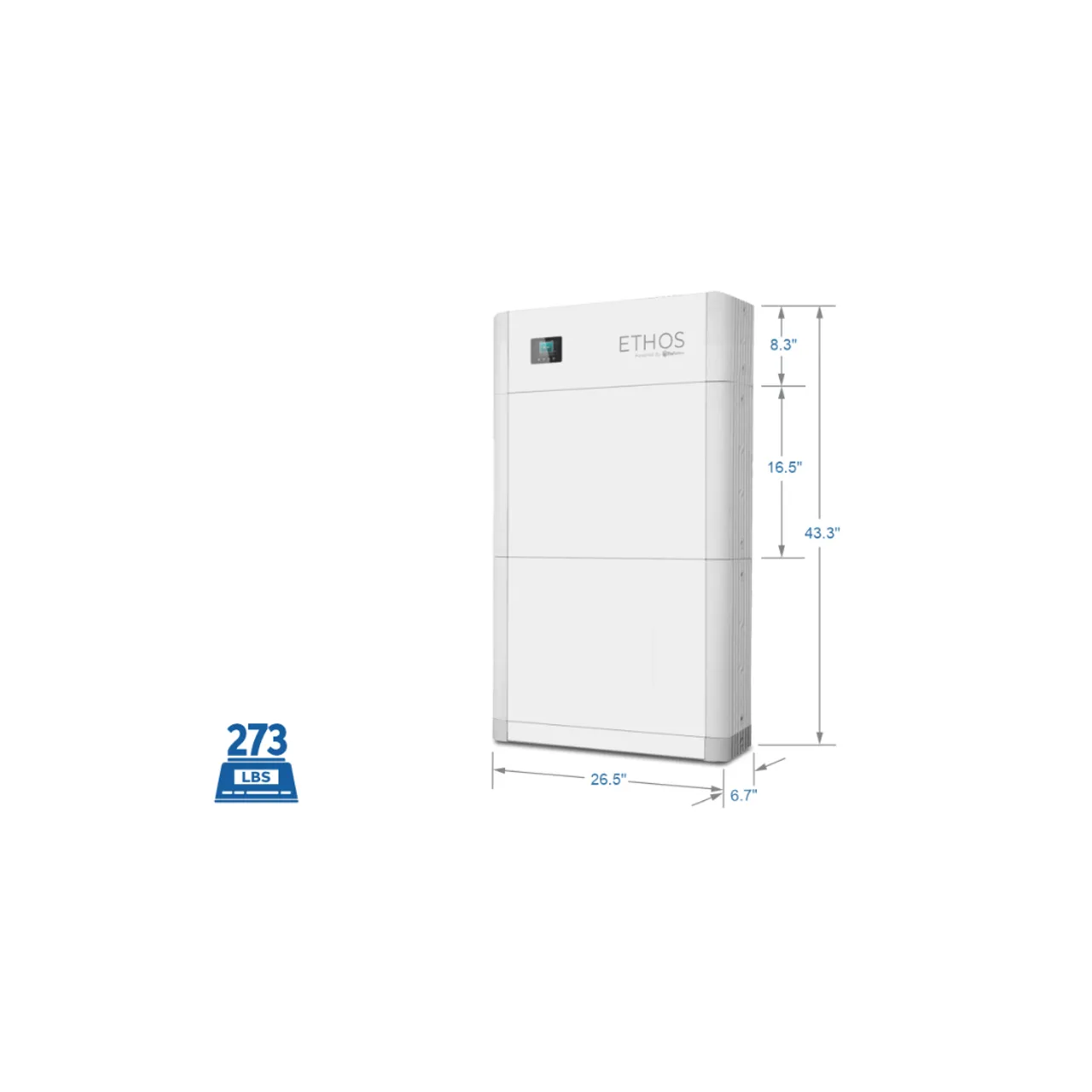

Depth:	6.7 in (170 mm)
Width:	26.5 in (674 mm)
Height:	43.3 in (1100 mm)
Max Connections:	Up to (16) parallel connections per control box
Protection Rating:	IP65
Communications:	CANBus / RS485
Certifications:	UL9540, UL9540a, UL1973, & UN38.3
