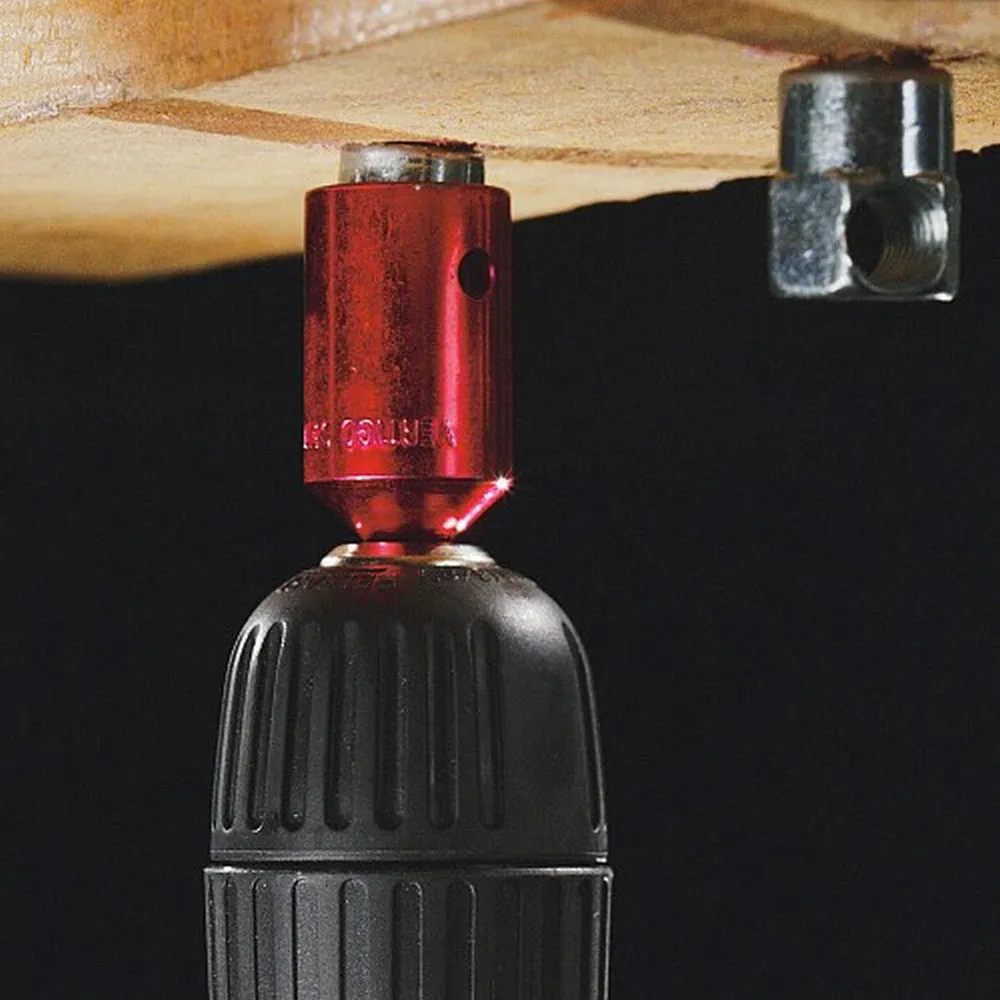

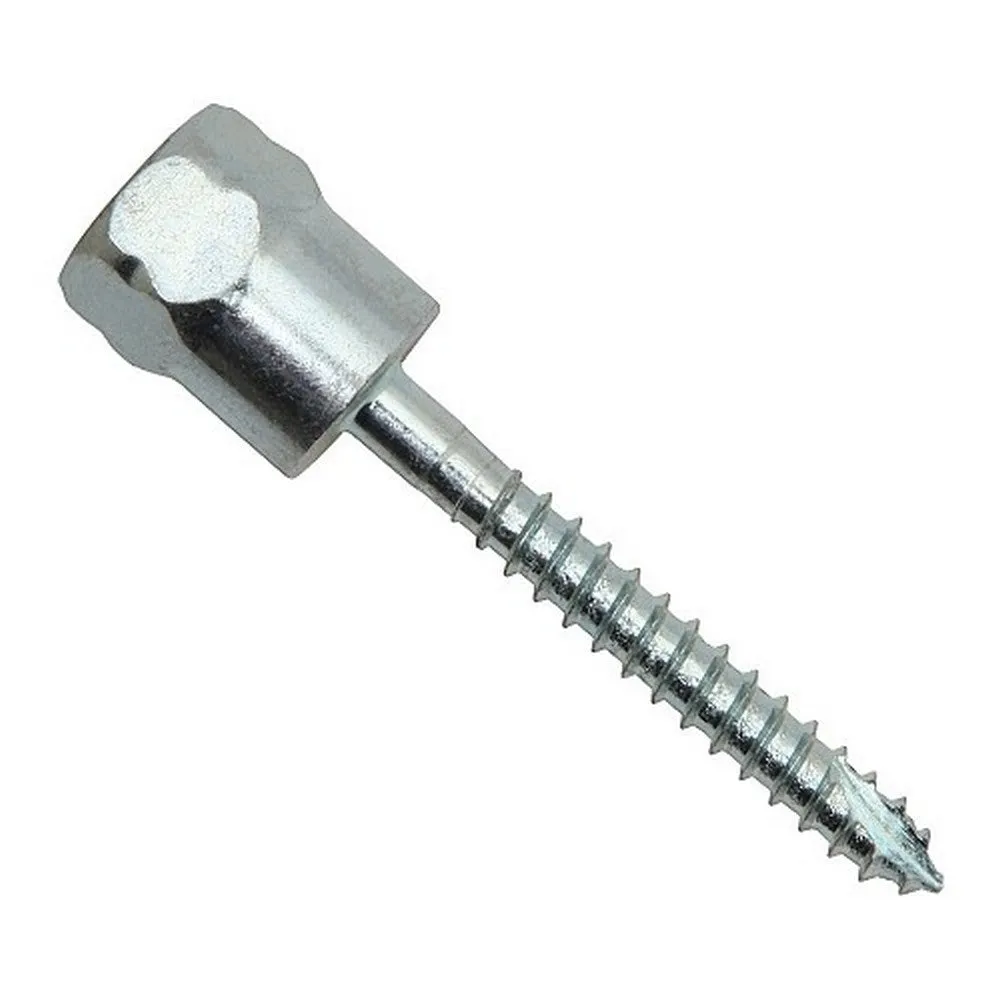

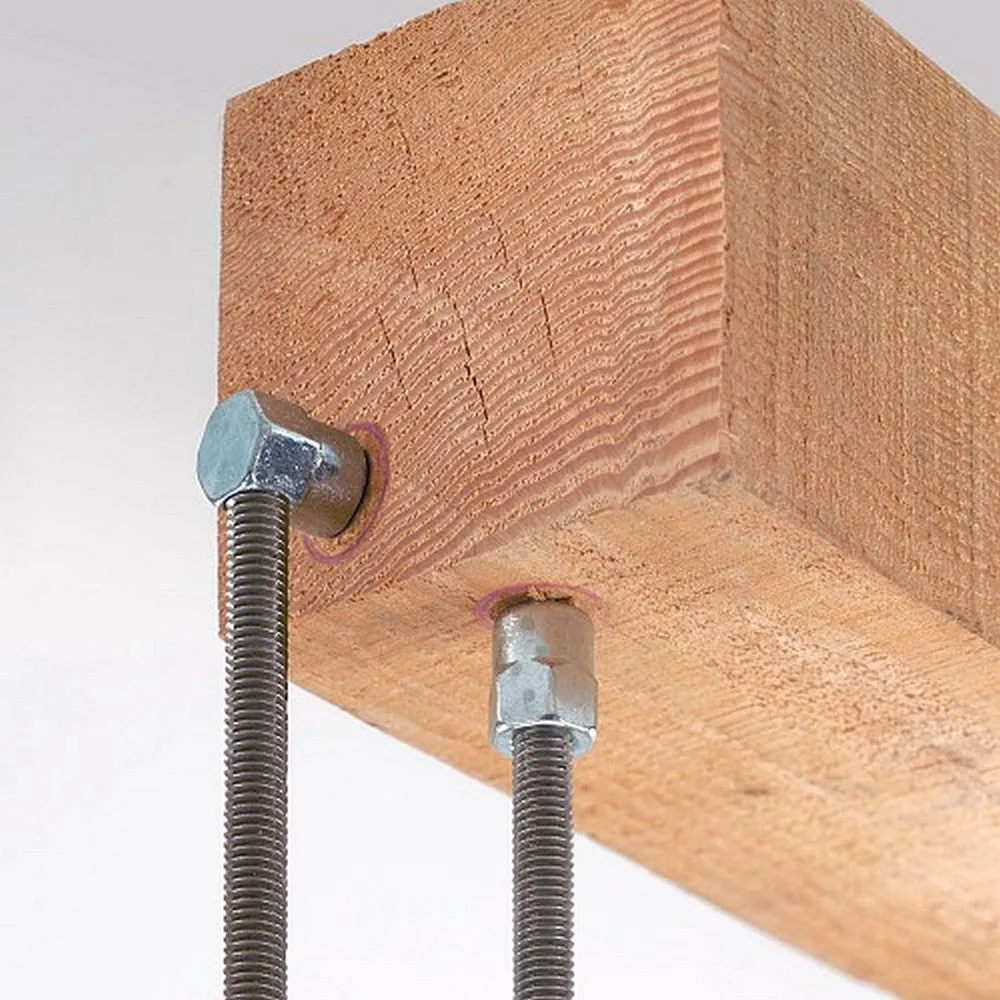

Hangermate is an all steel threaded fastening system for suspending steel threaded rod vertically overhead in pipe hanging, fire protection, electrical conduit and cable-tray applications. They are available in versions which can be installed in a variety of base materials including steel purlins, bar joists and beams, wood frame columns and beams, as well as concrete ceilings, beams and columns. Steel threaded rods in 1/4" and 3/8" diameters can be vertically suspended with Hangermate (a 1/2" diameter size is also available for wood). They are also offered in a side mount style for lateral installation of 1/4" and 3/8" diameter steel threaded rods onto joists, columns and overhead members. For all steel and wood hangers, a Hangermate Socket Driver is recommended to provide proper installation with a drill screw gun. For concrete hangers, a powered impact tool with a clutch is recommended. A pivot head version is also available for flexible connection angle and positioning of rod hangers. An acoustical ceiling eyelet version is also available for hanging wire or cable attachments.
Features:
- Ease and speed of overhead installation
- Lower in-place cost, when compared to beam clamps, lag bolts and dropins
- Steel and wood Hangermate can be installed with a drill screw gun
- Side mount versions available for steel and wood Hangermate
- Socket drivers, pole tool and accessories to optimize ease of installation
Specifications:
- Description: 1/4-20" x 1"
- For: Wood
- Rod Diameter: 3/8"
- Driver (red): PFM2201150
- Mount: Vertical
General Applications & Uses:
- Hanging Pipe and Sprinkler Systems
- Suspending Conduit and Cable Trays
- Lighting Systems and Overhead Utilities
- HVAC Ductwork and Strut Channels
- Suspended Ceilings
- Mounting Security Equipment
Approvals:
- FM Approvals (FM) - see listing for applicable sizes and types Pipe Hangers components for automatic sprinkler systems - File No. JI 3015153
- Underwriters Laboratory (UL) - see listing for applicable sizes and types Pipe Hangers - File No. EX 1289
Additional Hangermate Rod Hangers & Drivers:
| Part No. | Description | For | Rod Diameter | Driver | Mount |
| Vertical | |||||
| Side |
|||||
| Vertical | |||||
| Vertical | |||||
| Vertical | |||||
| Side |
* All Pictures Shown Are For Illustration Purpose Only. Actual Product May Vary Due To Product Enhancement.
