Features:

Universal Intermittent Pilot Ignition Module Replaces Multiple Field Installed Intermittent Pilot Modules
Uses Existing Intermittent Pilot Burner
Provides Ignition Sequencing, Flame Monitoring and Safety Shut-Off for Intermittent Pilot Warm Air Furnace and Heating Appliances
Provides 100 Percent Pilot Gas Shut-Off If Pilot Fails to Light
After 6 Minute Delay, Trial for Ignition is Repeated
Ignition Trial/Delay Sequence is Repeated Until the Appliance Lights or Call for Heat is Removed

Specifications:

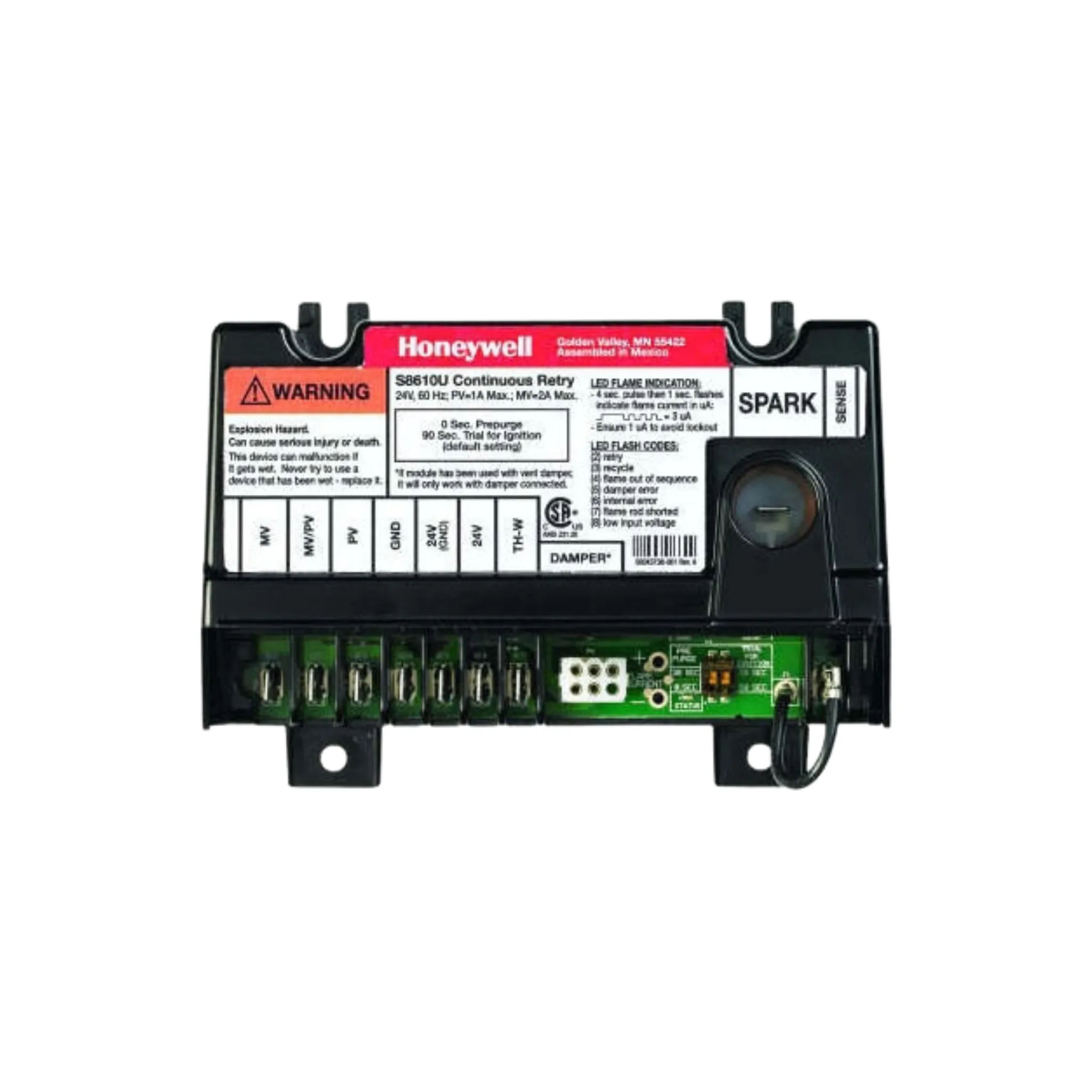

Manufacturer: Honeywell
Manufacturer Part Number: S8610U3009
Product Type: Ignition Control Module
Fuel Type: Natural/Liquid Propane Gas
Flame Sense Type: Single or Dual Rod
Ignition Source: Internal High Voltage Spark Generator
Ignition Sequence: Continuous Retry
Ignition Trial Time: 15/90 Second
Prepurge Time: Configurable to 30 Second/No Pre-Purge
Flame Failure Response Time: 2 Second
Valve Rating: 1 A Pilot/2 A Main @ 165 Degrees F, 1 A Pilot/Main @ 175 Degrees F
Power Rating: 24 VAC @ 60 Hz
Temperature Rating: -40 to 165 Degrees F
Dimensions: 4.6" x 6.4" x 3.05"
Weight: 0.75 lb.
Includes: Damper Connection, Automatic Vent Damper Plug
