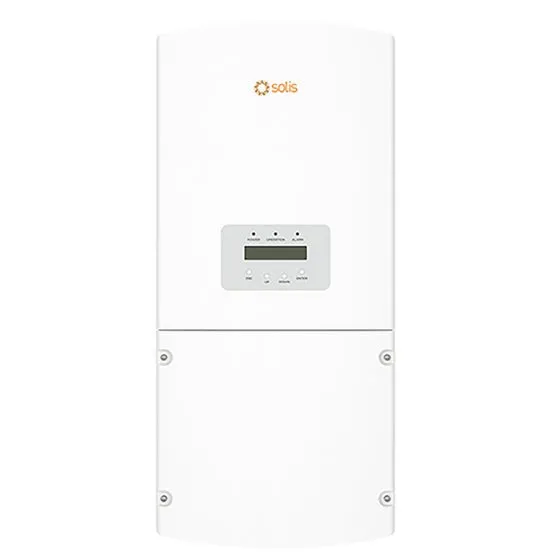

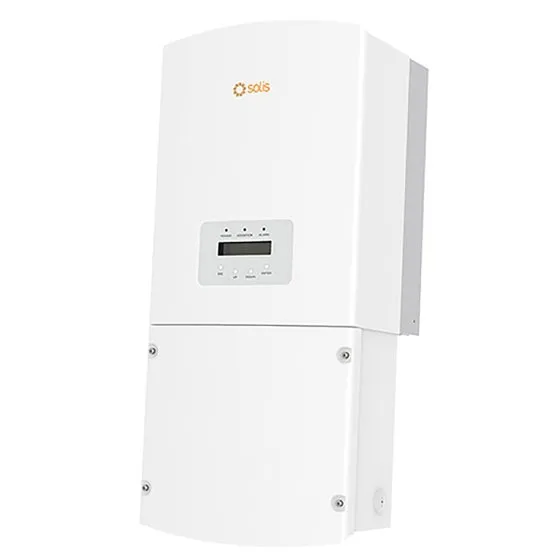

Solis Solar Inverter 7.6kw 4G Single phase Three MPPT. US Version with APS transmitter
Solis 6-10KW US plus version single phase string inverters have up to 4 MPPTs which are perfect for residential rooftop systems with different roof orientations. The maximum input current per string is up to 14A, which is compatible with new high-power and bifacial PV modules. A built-in (optional) ANSI C12.20, 0.5 Accuracy Class revenue grade meter will guarantee accurate data recording.
3.8-11.4kW Energy Storage Inverter Leading Features
- String current up to 14A
- Support module level monitoring
- Industry-leading 3 and 4 MPPT designs
- Max. efficiency 97.8% (CEC efficiency 97.5%)
- CA Rule 21 compliant and UL 1741 SB Certified
- Sunspec protocol with option cellular and WiFi
- Integrated module level rapid shutdown transmitter
- AFCI protection, proactively reduces fire risk
- 10 years standard warranty with extension options
- Optional Built-in Revenue Grade Meter, ANSI C12.20-2010 compliance
Input DC
- Max. input voltage: 600 V
- Rated voltage: 330 V
- Start-up voltage: 120 V
- MPPT voltage range: 100-500 V
- Max. input current: 14A
- Max. short circuit current: 22A
- MPPT number/Max. input strings number: 3/3
Output AC
- Rated output power: 7.6 kW
- Max. apparent output power: 7.6 kVA
- Max. output power: 7.6 kW
- Rated grid voltage: 1Ф/PE, 240 V / 208 V
- Rated grid frequency: 60 Hz
- Max. output current for 240 V grid: 31.7A
- Max. output current for 208 V grid: 36.5 A
- Power factor: >0.99 (0.8 leading - 0.8 lagging)
- THDi: <3%
Efficiency
- Max. efficiency: 97.8%
- CEC efficiency: 97.5%
Protection
- DC reverse-polarity protection: Yes
- Ground fault monitoring: Yes
- Anti-islanding protection: Yes
- Integrated AFCI (DC arc-fault circuit protection): Yes
- Integrated DC switch: Yes
- Rapid shutdown: Built-In APS or Tigo Transmitter
- Surge Protection: DC Type III / AC Type III
- Compliant MLRSD Products: TS4-A-F/2F, APSmart RSD-S / RSD-D
General Data
- Dimensions (W*H*D): 13.1*28.8*9.8 in (333*732*249 mm)
- Weight: 45.2 lbs (20.5 kgs)
- Topology: Transformerless
- Self-consumption (night): <1 W
- Relative humidity: 0-100%
- Operating ambient temperature range: -13°F to 140°F (-25°C to 60°C)
- Storage environment: -13°F to 176°F (-25°C to 80°C)
- Ingress protection: TYPE 4X
- Cooling concept: Natural convection
- Max. operation altitude: 13,120 ft (4000 m)
- Compliance: UL1741SB, UL1741SA, IEEE 1547-2018, UL1699B, UL1998, FCC Part15 ClassB, California Rule 21, Heco Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1
Features

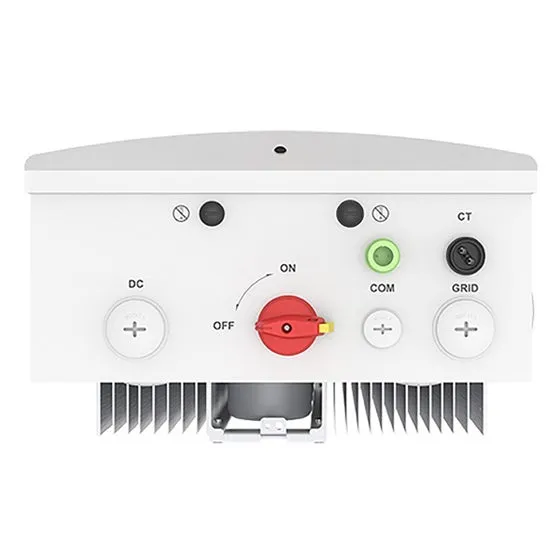

- DC connection: 2 knockout for 1"conduit at bottom, 4 knockout for 3/4"conduit at side and back, Screw clamp terminal
- AC connection: 2 knockout for 1"conduit at bottom, 4 knockout for 3/4"conduit at side and back, OT terminal
- Display: LCD
- Communication: RS485, Optional: Cellular, Wi-Fi
