Product Details
+
Two standard kits available -
10 Plant Kit -
1 x 47 Litre (10 Gallon) water tank (Dimensions - 14 inches (37cm) long, 11 inches (28cm) wide, 22 inches (56cm) high)
1 x 1/4 inch Tube tank connector.
5m x 1/4 inch feed tube.
10 x connectors and drip nozzles.
1 x 1/4 inch 'T' piece.
2 x 1/4 inch elbows.
2 x 1/4 inch tube plugs.
1 x 1/4 inch tube shut off tap.
10 x 1/4 inch tube stakes.
Giving up to approx. 100 hours coverage.
1 x 47 Litre (10 Gallon) water tank (Dimensions - 14 inches (37cm) long, 11 inches (28cm) wide, 22 inches (56cm) high)
1 x 1/4 inch Tube tank connector.
5m x 1/4 inch feed tube.
10 x connectors and drip nozzles.
1 x 1/4 inch 'T' piece.
2 x 1/4 inch elbows.
2 x 1/4 inch tube plugs.
1 x 1/4 inch tube shut off tap.
10 x 1/4 inch tube stakes.
Giving up to approx. 100 hours coverage.
20 Plant Kit -
1 x 47 Litre (10 Gallon) water tank (Dimensions - 14 inches (37cm) long, 11 inches (28cm) wide, 22 inches (56cm) high)
1 x 1/4 inch Tube tank connector.
10m x 1/4 inch feed tube.
20 x connectors and drip nozzles.
1 x 1/4 inch 'T' piece.
2 x 1/4 inch elbows.
2 x 1/4 inch tube plugs.
2 x 1/4 inch tube shut off tap.
20 x 1/4 inch tube stakes.
Giving up to approx. 50 hours coverage.
NB. - The Stand is NOT included in either kit, but is available as an accessory (see you may also like below)

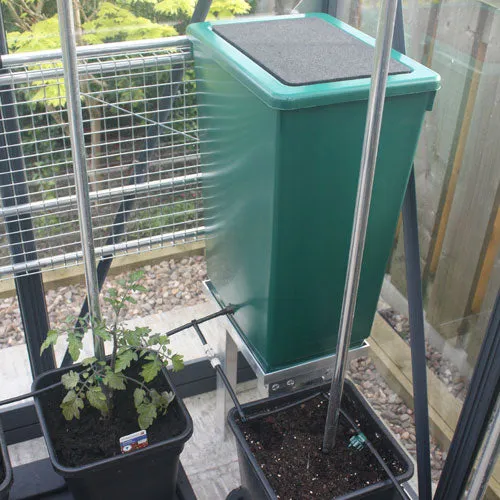

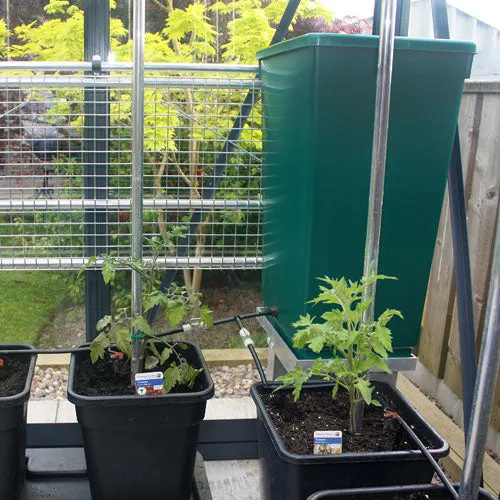

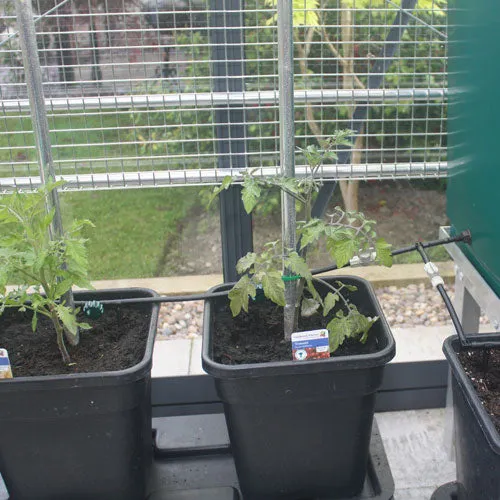

Water Delivery Example -

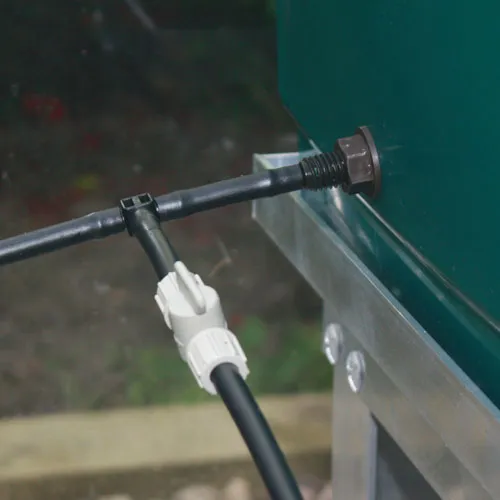

The flow rate is controlled and regulated by the shut off tap provided. Initially we suggest you should set the drippers to deliver around 1 drip every 10 seconds, and monitor the amount of water delivered over a short period. If more is necessary open the tap slightly. If less is needed then the tap can be closed, the tap only requires extremely fine adjustment!
Multiple tanks can be linked into a system to give increased capacity.
The tank should be raised so that the outlet is at the very least the same height as the drippers, for the best results the tank should be raised as high as is practical.
Learn more
to see details of installing these Tank Drip Watering Kits.
