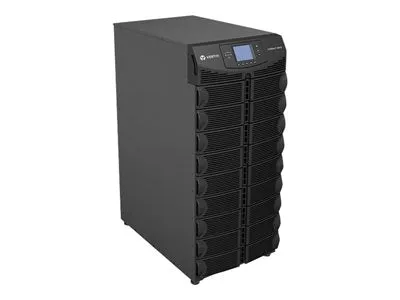

Name: Vertiv AS3B0NCYGNNXLKB Liebert APS 10kVA Scalable to 15kVA N 1| 208V Single Phase Modular UPS
SKU: 292599

Product Details ＋

AS3B0NCYGNNXLKB

The Vertiv Liebert APS 10kVA Scalable to 15kVA N 1 208V Modular UPS (AS3B0NCYGNNXLKB) is an online double conversion UPS with up to 21 minutes full-load runtime designed for room or row-based applications. It offers redundancy and flexibility for the future while ensuring maximum power availability to your critical systems. The APS modules are hot-swappable FlexPower assemblies and battery modules that are quickly and easily installed or replaced without disrupting power. The addition of power capacity or battery modules as needed or pay as you grow design allows for better CAPEX/OPEX budget management. With high energy efficiency of up to 92%, it supports sustainability and reduces the total cost of ownership (TCO). It has intelligent battery management and can operate in a temporary overload state up to 200% load. For remote management and environmental monitoring, add Liebert IntelliSlot Unity Cards, FREE Power Insight Software, and Vertiv environmental sensors.

Single/Split Phase, Low TCO, Pay As You Grow

The Vertiv Liebert APS 5-20kVA Scalable to 20kVA N 1 is a modular online double conversion uninterruptible power supply (UPS) designed for room or row-based applications. It comes in 5kVA/4.5kW increments whether it is a 208V single phase UPS or 120/208V split phase UPS, with step-down transformer or transformer-free. Liebert APS UPS offers module-level redundancy that allows you to maintain flexibility for the future while ensuring maximum power availability to your critical systems. This UPS provides hot-swappable FlexPower assemblies and battery modules that are quickly and easily installed or replaced without disrupting power. The addition of power capacity or battery modules as needed or pay as you grow design allows for better CAPEX/OPEX budget management. This modular UPS includes these features:

Online Double Conversion Technology in this UPS means power protection and conditioning.
User replaceable and hot-swappable
Up to 92% Energy Efficiency, which supports sustainability and reduces TCO
With on-board controls, modules can take itself offline without causing unit to shutdown
Has intelligent battery management including temperature-compensated charging to prolong battery life
Can operate in a temporary overload state to up to 200% load.

GENERAL INFORMATION
Manufacturer	Vertiv
Manufacturer Part Number	AS3B0NCYGNNXLKB
Brand Name	Liebert
Product Series	AS3
Product Name	APS 10kVA Scalable to 15kVA N 1
Product Type	Dual Conversion Online UPS
TECHNICAL INFORMATION
Plug/Connector Type	Hard Wire 3-wire (L-L-G)
Phase	Single Phase
Application/Usage	Mission Critical Equipment Room
POWER DESCRIPTION
Load Capacity	10000 VA
Input Voltage	230 V AC
Input Voltage Range	120 V AC - 280 V AC
Input Frequency	70 Hz
Output Frequency	60 Hz
CONTROLS/INDICATORS
Status Indicators	LCD Display
INTERFACES/PORTS
Serial Port	Yes
Modem (RJ-11)	No
Network (RJ-45)	No
USB (HID Compliant) Port	Yes
EPO Port	Yes
BATTERY INFORMATION
Battery Characteristics	Valve Regulated Lead Acid (VRLA)
Backup/Run Time (Full Load)	21 Minute
Backup/Run Time (Half Load)	51 Minute
ENVIRONMENTAL CONDITIONS
Environmental Sensors	Leak Detection Sensor Temperature Sensor Humidity Sensor
Maximum Operating Temperature	104°F (40°C)
PHYSICAL CHARACTERISTICS
Form Factor	Rack/Tower
Height	27"
Width	17"
Depth	32"
MISCELLANEOUS
Additional Information	Auto Shutdown Software: Trellis™ Power Insight Extra Power for Future Expansion: 15kVA/13.5kW N 1 Relative humidity: % 0 - 95%, non-condensing Altitude: m (ft) 3000 (10000) @ 25°C (77°F) Output Voltage: 100-240VAC VGA: No Hot-Swappable: Yes
Certifications & Standards	Compliant Safety Standards: IEC/EN/AS 62040-2 Cat 2 CISPR22 Class A FCC Part 15 Class A IEC/EN/AS 62040-1:2008 UL 1778 4th Ed CSA 22.2 No. 107.1
Environmentally Friendly	Yes
Environmental Certification	REACH RoHS 2 WEEE
WARRANTY
Limited Warranty	2 Year
