Single/Split Phase, Low TCO, Pay As You Grow

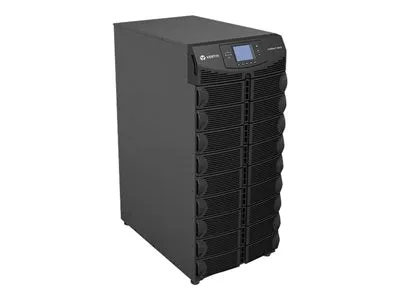

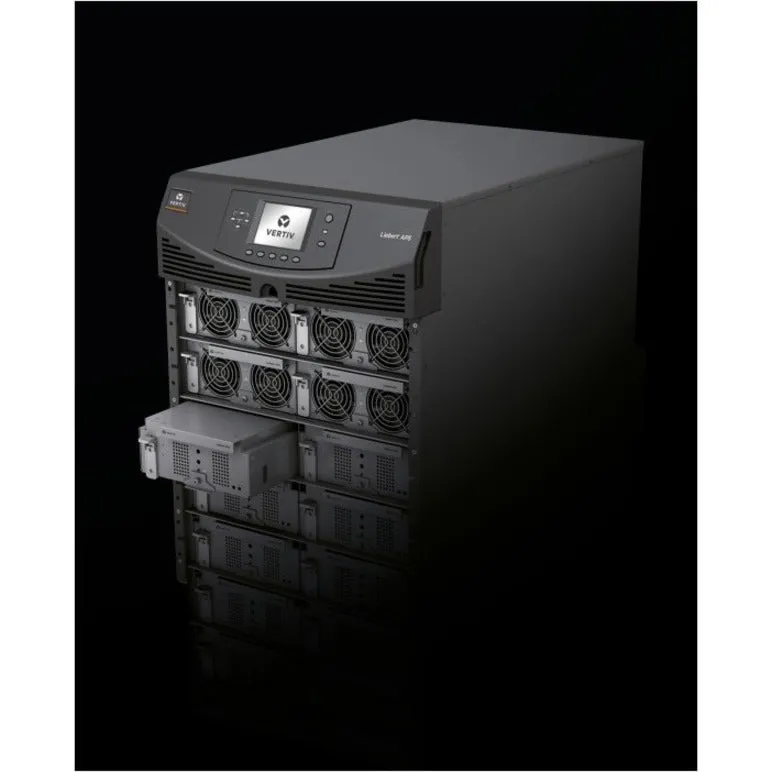

The Vertiv Liebert APS 5-20kVA Scalable to 20kVA N 1 is a modular online double conversion uninterruptible power supply (UPS) designed for room or row-based applications. It comes in 5kVA/4.5kW increments whether it is a 208V single phase UPS or 120/208V split phase UPS, with step-down transformer or transformer-free. Liebert APS UPS offers module-level redundancy that allows you to maintain flexibility for the future while ensuring maximum power availability to your critical systems. This UPS provides hot-swappable FlexPower assemblies and battery modules that are quickly and easily installed or replaced without disrupting power. The addition of power capacity or battery modules as needed or pay as you grow design allows for better CAPEX/OPEX budget management. This modular UPS includes these features:
SCALABLE POWER SOLUTION
The Liebert APS UPS is a modular solution for dynamic power demands. It allows you to configure to your desired level of capacity and redundancy. At 5kVA/4.5kW to 20kVA/18kW, your UPS is scalable to 20kVA/18kW N 1. Simply plan for today and scale as you grow your business or upgrade as needed in the future. This allows for better CAPEX/OPEX budget management than traditional UPS systems. Add or replace power and/or battery modules in the field without taking the unit offline.
HIGH AVAILABILITY
Have the peace of mind that your critical systems will be available and up and running as expected through power disruptions, fluctuations and outages. This online double conversion UPS offers conditioned power to temporary overloads without transfers to/from bypass. It enhances reliability and provides multiple layers of protection. Its fault-tolerant design, enables the power, battery and control modules to take themselves offline if there is a problem, without sacrificing overall system integrity.
ENERGY SAVINGS & LOW TOTAL COST OF OWNERSHIP
The Liebert APS UPS delivers energy efficiency of up to 92% supporting sustainability and reducing the total cost of ownership. Module-level redundancy eliminates the expense of purchasing and planning additional cabinets. User-replaceable and hot-swappable batteries, controls and power components also help reduce maintenance costs. Integral battery monitoring with temperature compensated charging extends battery life and help reduce replacement costs.
| GENERAL INFORMATION | |
|---|---|
|
Manufacturer
|
Vertiv
|
|
Manufacturer Part Number
|
AS3C0NCXGNNXLKB
|
|
Brand Name
|
Liebert
|
|
Product Series
|
AS3
|
|
Product Name
|
APS 15kVA Scalable to 15kVA N 1
|
|
Product Type
|
Dual Conversion Online UPS
|
| TECHNICAL INFORMATION | |
|
Plug/Connector Type
|
Hard Wire 3-wire (L-L-G)
|
|
Phase
|
Single Phase
|
|
Application/Usage
|
|
| POWER DESCRIPTION | |
|
Load Capacity
|
15 kVA/13.50 kW
|
|
Input Voltage
|
230 V AC
|
|
Input Voltage Range
|
120 V AC - 280 V AC
|
|
Output Voltage
|
|
|
Input Frequency
|
70 Hz
|
|
Output Frequency
|
60 Hz
|
| CONTROLS/INDICATORS | |
|
Status Indicators
|
LCD Display |
| INTERFACES/PORTS | |
|
Serial Port
|
Yes
|
|
Modem (RJ-11)
|
No
|
|
Network (RJ-45)
|
No
|
|
USB (HID Compliant) Port
|
Yes
|
|
EPO Port
|
Yes
|
| BATTERY INFORMATION | |
|
DC System Voltage
|
144 V DC
|
|
Battery Characteristics
|
Valve-regulated/Non-spillable
|
|
Battery Chemistry
|
Lead Acid
|
|
Backup/Run Time (Full Load)
|
8 Minute
|
|
Backup/Run Time (Half Load)
|
22 Minute
|
| ENVIRONMENTAL CONDITIONS | |
|
Environmental Sensors
|
|
|
Maximum Operating Temperature
|
104°F (40°C)
|
|
Thermal Dissipation
|
1233.24 W
|
| PHYSICAL CHARACTERISTICS | |
|
Form Factor
|
Rack/Tower
|
|
Height
|
27"
|
|
Width
|
17"
|
|
Depth
|
32"
|
| MISCELLANEOUS | |
|
Additional Information
|
|
|
Certifications & Standards
|
Certifications & Standards:
|
|
Environmentally Friendly
|
Yes
|
|
Environmental Certification
|
|
| WARRANTY | |
|
Limited Warranty
|
2 Year
|
